P13.5S-1W Torch Bulb
Specifications

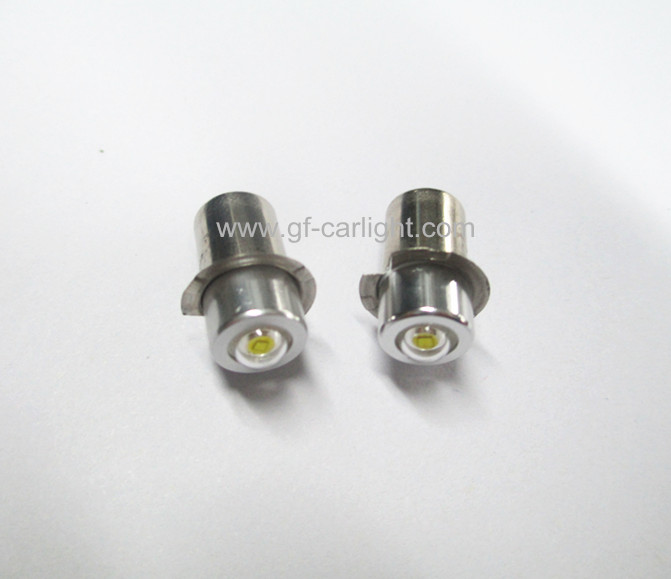

Torch LED Bulb
1. 3.0V-6.0V input voltage
2. 1W power LED with P13.5s
3. metal case, cool white
4. 1 W,Torch LED Bulbs
Torch LED Bulb
(A) 1W High Power LED bulb with copper case.
(B) The internal driver control the bulb current against the temperature of bulb automatically to prevent over heating.
(C) To work in a wide range of Voltage: 3.0 to 6.5V*.
(D) Maximum power consumption of LED: 1 Watt, 3.4V 350mA.
(E) Pre-focus type, LMP series.
(F) Super bright, Light Intensity up to70 Lumen.
(G) Polarity: bottom point (+ positive), side contact (- negative)
(H) Electronic and Optical Characteristics: Ta = 25°C
|
Item Number |
Designed Operating Voltage |
Designed Current |
Light Emitting Color |
Light Intensity At IF max |
Correlated Color Temperature |
|
P13.5s base |
|
|
|
|
|
|
LMP-1W-NW-G |
3.0 – 6.5V* |
250mA |
Neutral white |
70 Lm |
4000~4500K |
|
LMP-1W-CW-G |
3.0 – 6.5V* |
250mA |
Cool White |
70 Lm |
6000~6500K |
|
E10 Screw base |
|
|
|
|
|
|
LME-1W-NW-G |
3.0 – 6.5V* |
250mA |
Neutral white |
70 Lm |
4000~4500K |
|
LME-1W-CW-G |
3.0 – 6.5V* |
250mA |
Cool White |
70 Lm |
6000~6500K |
* Maximum safe operating Voltage.
(I) LED Life time: 50000 hours under correct testing conditions, Vf=3.4, If=350mA, Ta=25°C.
(J) Usages: Replacement of torch bulb.
(K) Completely withdraw energy of batteries.
(L) Lighting Color: available in white, red, green, blue.
(M) Available in P13.5s base or E10x13 screw base.
(N) Marking on base:
|
LMP/LME-series |
CH 3-6V |
