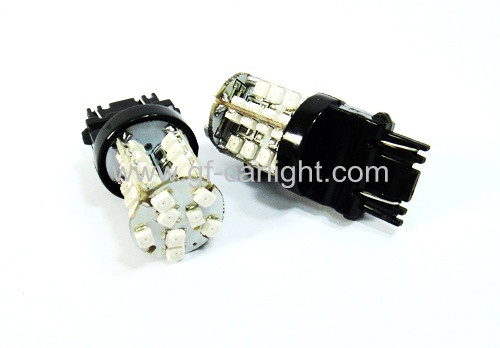

3157-40-1210SMD LED Light lamp bulbs
More Pictures
Specification
Factory Name: 3157-40-1210SMD LED Light lamp bulbs
Flux Luminous: 280 lm
Color Temperature:3000-10000k
Voltage: 12V
Light source: 1210SMD
Life span: 10,0000h
Application: turning, braking and back-up light
Type of Lights: Turn Signal corner light, Parking DRL light, Tail Stop Brake light
Bulb size: ~45mm (~1.77 inches) total length from end to end; ~21mm (~0.83 inches) in width with OEM socket base size: (15.7 x 8.5
x 3.5 mm)
Detail Spec & Features:
100% brand new
Long-lasting working life
Low power consumption,save your power supply
High luminance, super bright
Easy to install, just plug & play
With overload protection, short circuit protection, heat dissipation
Constant current
Each 3156, 3057, 3157 LED bulb equips with 40 SMD 1210 LED light chip

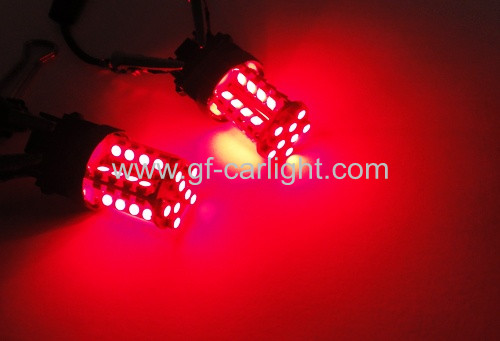

Emit Red color light, long lasting life
Easy Plug & Play installation; Quick instant Start-Up time
Shock & vibration Resistant and instant on/off response time
It works at ~12V
Please try to reverse the polarity of the LED light if you found that the LED light is not working properly after installation
***NOTE***If you are using these LED light bulbs to replace the Turn Signal blinker light, Tail Brake Stop light, Parking / Daytime
Running Light DRL or Backup Reverse light; depending on your vehicle electric circuit, you may need to add a pair of load resistors
to prevent hyper/error flashing or malfunction problem
Cross Reference for this 3156 or 3157 LED light bulb:
3156 (single filament): 3056 3356 3456 4156
3157 (dual filament): 3047 3057 3155 3157A 3357 3457 3457A 4157
Suitable Sockets:
1156/1157/7440/7443/3156/3157/H8/H11/9005/9006
