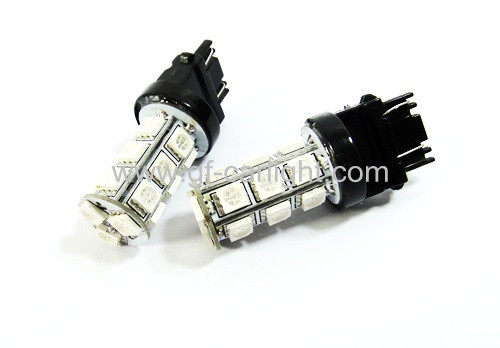

3157-18-5050SMD LED Light lamp bulbs
More Pictures
Specification
Factory Name: 3157-18-5050SMD LED Light lamp bulbs
Flux Luminous: 324 lm
Color Temperature:3000-10000k
Voltage: 12V
Light source: 5050SMD
Life span: 10,0000h
ype of Lights: Turn Signal corner light, Parking DRL light, Tail Signal Stop Brake light
Bulb size: ~51mm (~2.0 inches) total length from end to end; ~15mm (~0.6 inches) in width with OEM socket base size: (15.7 x 8.5 x
3.5 mm)
Detail Spec & Features:
100% brand new
Long-lasting working life
Low power consumption,save your power supply
High luminance, super bright
Easy to install, just plug & play
With overload protection, short circuit protection, heat dissipation
Constant current
Each 3156, 3057, 3157 LED bulb equips with 18 SMD 5050 (3-chip) LED light chip (5W each bulb)

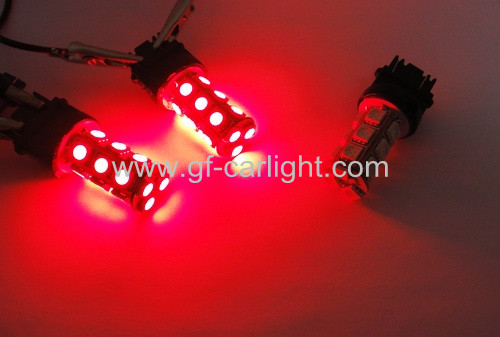

Emit brilliant Red color light, long lasting life
It is used for Turn Signal Parking light, Daytime Running Light, Tail Stop / Brake light, Reverse Backup light, Blinker / Corner /
Indicator bulbs
Easy Plug & Play installation; Quick instant Start-Up time
Shock & vibration Resistant and instant on/off response time
It works at ~12V
Please try to reverse the polarity of the LED light if you found that the LED light is not working properly after installation
***NOTE*** If you are using these LED light bulbs to replace the Turn Signal blinker light, Tail brake Stop light, Parking /
Daytime Running Light DRL or Backup Reverse light; depending on your vehicle electric circuit, you may need to add a pair of load
resistors to prevent hyper/error flashing or malfunction problem
Cross Reference for this 3156 or 3157 LED light bulb:
3156 (single filament): 3056 3356 3456 4156
3157 (dual filament): 3047 3057 3155 3157A 3357 3457 3457A 4157
Suitable Sockets:
1156/1157/7440/7443/3156/3157/H8/H11/9005/9006
